  [Áø°ø·Î¿ë ÃÊ°í¿Â ¿Âµµ¼¾¼­] Áø°ø·Î ¿ë S, R, B, C type Thermocouple (with Terminal Heads)
  ±Û¾´ÀÌ : ´ÙÀÏIBC     ³¯Â¥ : 11-08-15 17:35     Á¶È¸ : 15133
High Temperature Thermocouple Assemblies
Operating Temperatures Up to 4200¢ªF (2315¢ªC)

for Vacuum Furnace


Thermocouple Assemblies with Terminal Heads






Terminal Head Assembly
Conax Buffalo provides high temperature assemblies with T5, T8 and T11 termination
heads in aluminum, stainless steel or cast iron to meet application needs. T5 termination
heads meet NEMA 4 requirements providing protection against windblown dust and rain,
splashing water, hose-directed water and external ice formation. (See page 11 for details on
termination heads.) The sheath is affixed to the terminal head using a Conax Buffalo
packing gland Type PG4 with lava sealant. Terminal heads with terminal
blocks and gasket seal are rated to 275¢ª F (135¢ª C).

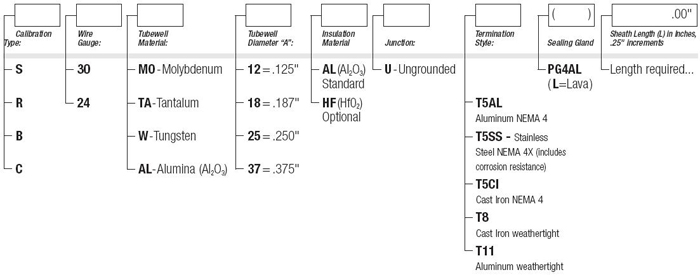

Progressive Descript-xion Example:
S24-AL37-AL- U - T 5 C I ( PG4AL)-12.00"

Notes:
• .125" diameter sheath is available with 30 gauge wire only.
• Alumina sheath is not available in .125" diameter.
• Molybdenum, Tantalum and Tungsten are not available in .375" diameter.

Conax Buffalo Technologies ´Â
Conax Technologies ÀÇ ¿¾ ¸íĪÀÔ´Ï´Ù.
